2 packs-IP65 Outdoor Motion Detector Controller 12VDC with Adjustable Sensitivity & Delay Timer for Security & Area Lighting Systems
Price: $17.99 - $14.09
(as of Oct 10, 2025 22:51:36 UTC – Details)
Product description
Technical Specifications: Wiring – Brown (L+/120-277VAC), Blue (N), Red (LAMP) per IEC 60446. Detection – 10m range, 140°×90° coverage, adjustable 8s-10min response. Electrical – 12VDC ±10%, 30W resistive/15W inductive load, 3× inrush protection. Environment – -20℃ to +60℃, IP44, EN 55015/61000-3-2 compliant. Compatible with incandescent/LED/CFL (IEC 60598-1), halogen up to 300W, and low-voltage DC lighting.

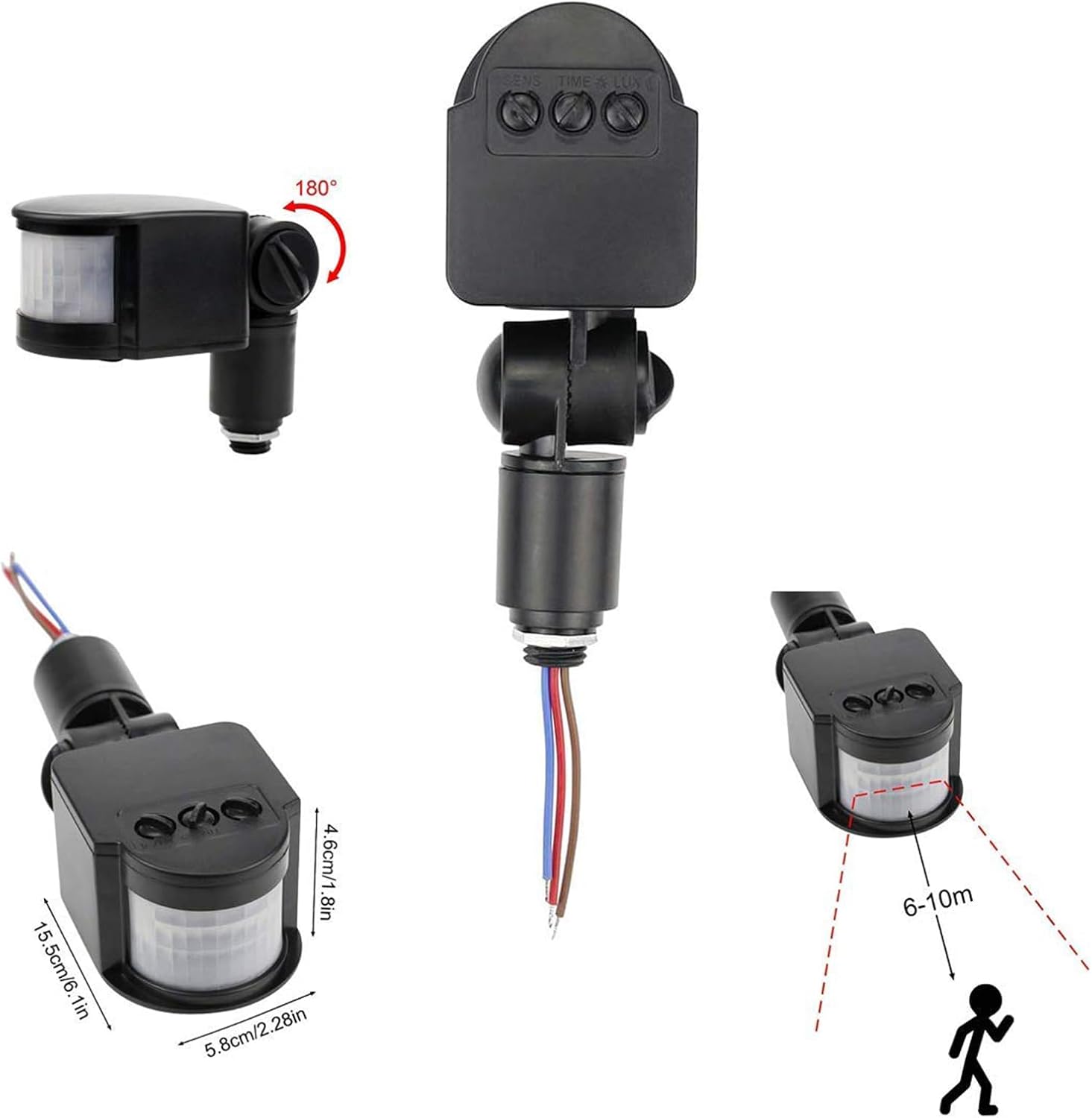

Precision Detection System with 140°×90° coverage EN 50131-2-2 compliant 10m range anti-pet ≤25kg
Industrial-grade 12VDC ±10% input 10-30VA 30W resistive / 15W inductive load capacity
Operates -30℃ to +60℃ EN 60721-3-5 Class 5K5 IP44 IEC 60529 weatherproof housing
Adjustable trigger 5s-30min ±10% potentiometer auto-reset overload protection
CE EMC 2014/30/EU RoHS 3 2025 EN 55015 EMI certified
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
5.0 out of 5 stars 1
5.0 out of 5 stars 1
5.0 out of 5 stars 1
4.7 out of 5 stars 4
—
—
Price
$14.09$14.09 $14.09$14.09 $14.09$14.09 $8.47$8.47 $15.18$15.18 $26.88$26.88
pack
✓
✓
✓
✓
✓
✓
1. Precision Detection System 140° Horizontal × 90° Vertical Coverage (EN 50131-2-2 Compliant) 10m Max Range with Anti-Pet Immunity (≤25kg)
2. Industrial-Grade Power Specs 12VDC ±10% Input (10-30VA) 30W Resistive / 15W Inductive Load Capacity
3. Extended Operational Reliability -30℃ to +60℃ Operating Temp (EN 60721-3-5 Class 5K5) IP44 Weatherproof Housing (IEC 60529 Validated)
4. Smart Delay Configuration Adjustable Trigger Interval: 5s-30min (±10% via Potentiometer) Auto-Reset Circuit with Overload Protection
5. Compliance & Safety CE EMC Directive 2014/30/EU RoHS 3 (2025) & EN 55015 EMI Certified
