Non Programmable Thermostat for Home 2 Heat 2 Cool Multistage System, with Room Temperature & Humidity Monitor (LCD White Backlit Screen)
Price: $27.99
(as of Aug 16, 2025 15:53:04 UTC – Details)
Product Description
TECHNICIAN SETUP
– Heating Swing (cycle rate or differential): is adjustable from 0.2°F to 2.0°F
– Cooling Swing (cycle rate or differential): is adjustable from 0.2°F to 2.0°F
– Temperature Calibration — (is adjustable from -4°F to +4°F)
– Fahrenheit/Celsius Display — (selectable °F or °C)
– 3 Minutes Compressor Delay — (selectable on or off)
– Display Humidity — (selectable on or off)
The display range of temperature………32°F to 99°F(0°C to 50°C)
Setpoint Temperature Range……………….44°F to 90°F(7°C to 32°C)
Display accuracy of temperature ………….±1°F
The display range of humidity………………10%RH to 99%RH
Display accuracy of humidity ………………..±5%RH(30%~80%RH), other ±8%RH
Operating ambient ………………………………..32°F to +105°F (0°C to +41°C)
Operating humidity ………………………………..90% (non-condensing)
Compatible with most conventional single or multistage systems
For use with Central Gas, Oil, or Electric Furnaces single or multistage systems, up to 2 Heat/ 2 Cool
1. Does not work with conventional multistage systems, heat pump systems, mini split systems and 12v rv thermostats.
2. Not compatible with 110-240V electric heat systems (like electric baseboard heat, line voltage, convectors, radiant-ceiling heat.
Features
– Large display and characters are easy to read
– Simple menu and big buttons for easy operation
– Fan switch with ON and AUTO functions
– Easy access battery compartment
– Low battery indication
– Easy wire coded terminal blocks
– Separate heating and cooling swing (cycle rate) adjustments
– Separate B & O terminals
– Terminal Designations: RH, RC, G, Y, Y2, C, O, B, W, W2
– Universal sub-base, mounts on wall or junction box
– Dimensions of thermostat: 4.92 x 3.74 x 0.98 in (W * H * D)

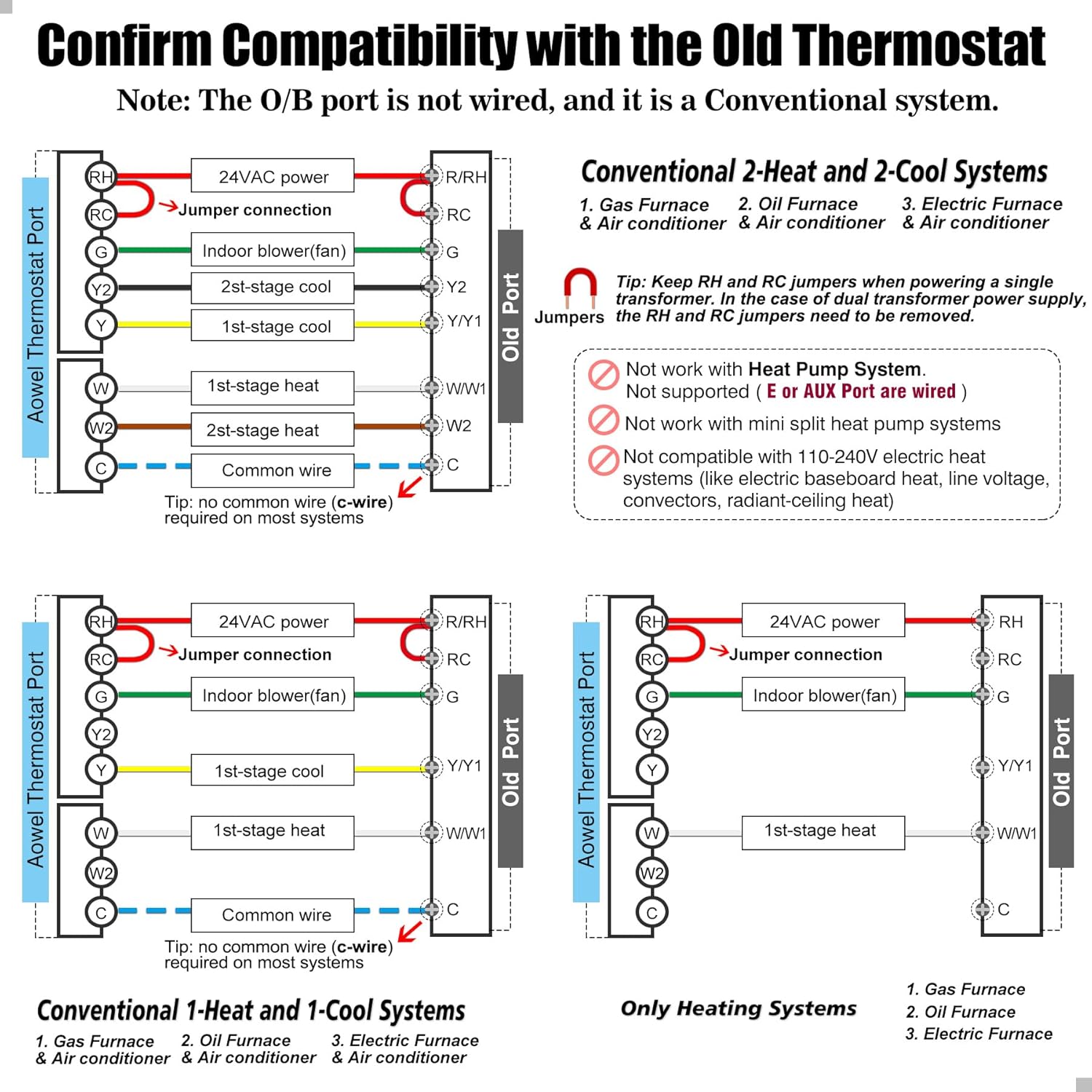

Terminal labeling reference
RH, (or R, R5, 5 ) —————- 24V Power (Heating)
RC ——————————– 24V Power (Cooling)
W, ( or W1, 4 ) ——————- Heating Relay 1
W2 ——————- Heating Relay 2
Y, ( or Y1 ) ———————– Cooling Relay 1
Y2 ———————– Cooling Relay 2
G ——————————— Fan Relay
O — Reversing Valve (for heat pump applications energized in Cool mode)
B —- Reversing Valve (for heat pumpapplications energized in Heat mode)
C ——————————— Common Wire
The C terminal does not have to be connected when the thermostat is powered by batteries.
Package Contents
1 x Digital Thermostat, 2 x Screws & Anchors, 1 x Installation Manual, 1 x Cable Label
Aowel AW711 Non-Programmable Thermostat for House, Compatible with 24V Conventional Multistage Heating & Air Conditioning, up to 2 Heat 2 Cool.
【Thermostat Applications 2H/2C】for with Conventional Multistage Heating & Air Conditioning, up to 2 Heat and 2 Cool. Gas/Oil/Electric Furnace (Heat only), Boiler Radiant (Heat only), Furnace Forced-Air (Heat Only), Gas Fireplace (24 Volts), Cooling Only, Only Heat Pump (without aux) Systems.
【Incompatible Systems】Does not work HVAC Heat Pump Systems (2H/1C, 4H/2C), PTACs, 3-wire Hydronic (Hot Water), Dual Fuel/Hybrid Heating. Does not work line voltage systems (120-240V electric baseboards heat); mini split heat pump air conditioner, RV air conditioners mach and roughneck series.
【Buyer’s Note】Before making a purchase, please ensure that the image and product description match your existing thermostat, and check the dimensions to confirm whether it will cover any wall marks left by the old thermostat.

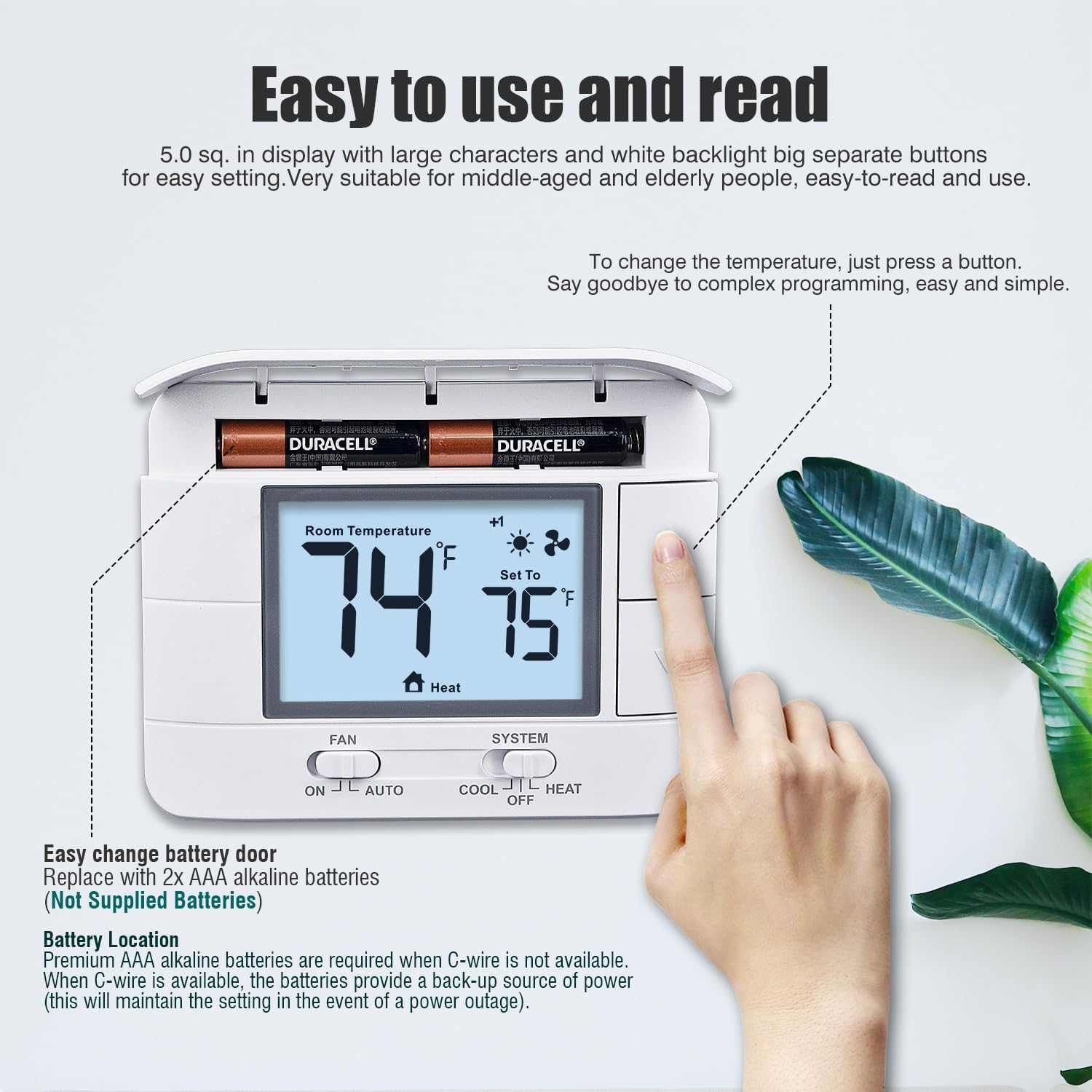

Easy-to see and read, with white backlight, large clear backlit digital display, very suitable for middle-aged and elderly people.
Simple thermostat, Support separate heat or cool swing setting (range: 0.2°F to 2°F), giving you even greater control over your home temperature.
Separate heating and cooling swing (Cycle Rate) setting and Room temperature calibration adjustment. 【Room temperature display range: 32°F to 99°F, temperature control range: 44°F to 90°F】
Accurate temperature control of +/-2-degree F for consistent comfort.【Room temperature display range: 32°F to 99°F, temperature control range: 44°F to 90°F】
Dual powered by 24VAC power or 2 AAA batteries, No common wire (c-wire) required on most systems (only required on heat only and cool only systems).
Friendly Service: 2-year worry-free warranty and 24h customer service. (Tip: before purchasing please check whether the wiring port of the old thermostat matches)
